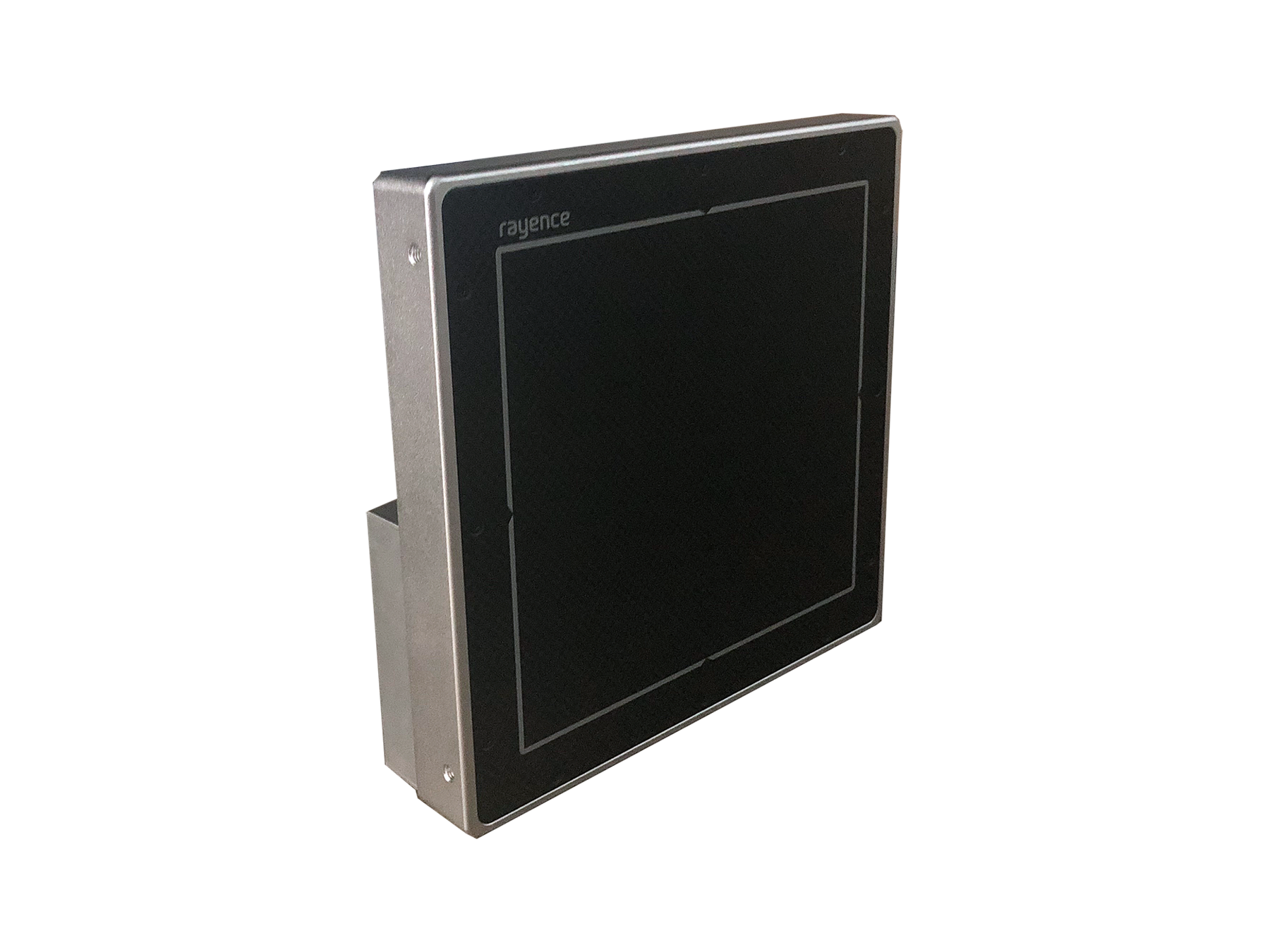

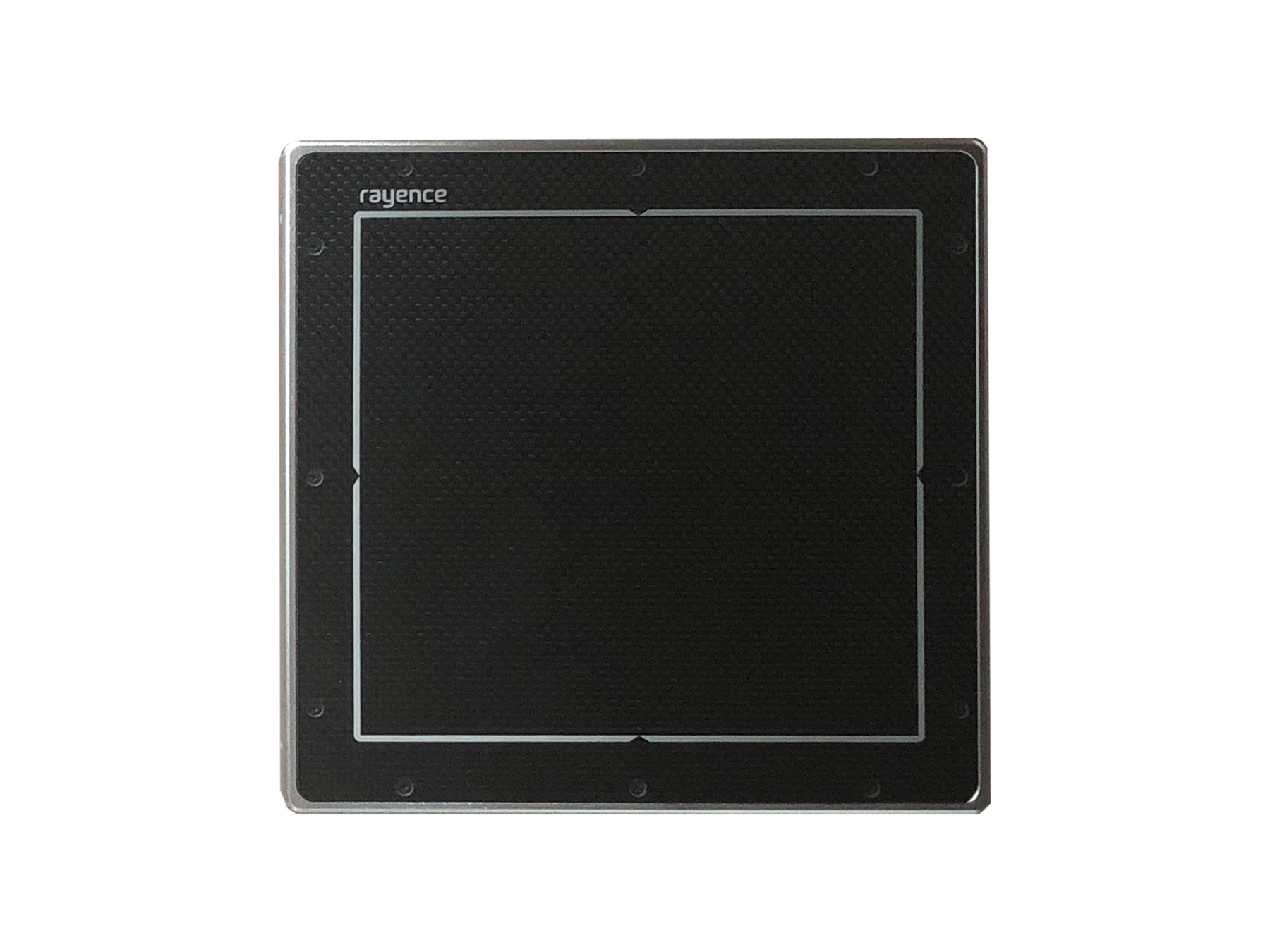

1515CF
제품사양
| Sensor Type | CMOS Photodiode Array |
|---|---|
| Scintillator | CsI |
| Total Pixel Matrix (Pixels) | 1568 x 1472 pixels (@2x2) |
| Active Area (mm) | 155.2 x 145.7 mm |
| Pixel Pitch (㎛) | 99 ㎛ (@2x2) |
| A/D Conversion (bits) | 14 bit |
| Data Interface | Optic |
| Frame Rate (fps) | 30 fps (@2x2) |
| Energy Range (kVp) | 40 - 120 kVp |
| Dimension (mm) | 188 x 247 x 32.5 mm |
| Weight (kg) | 2.0 kg |
| Resolution (lp/mm) | 5.0 lp/mm |
