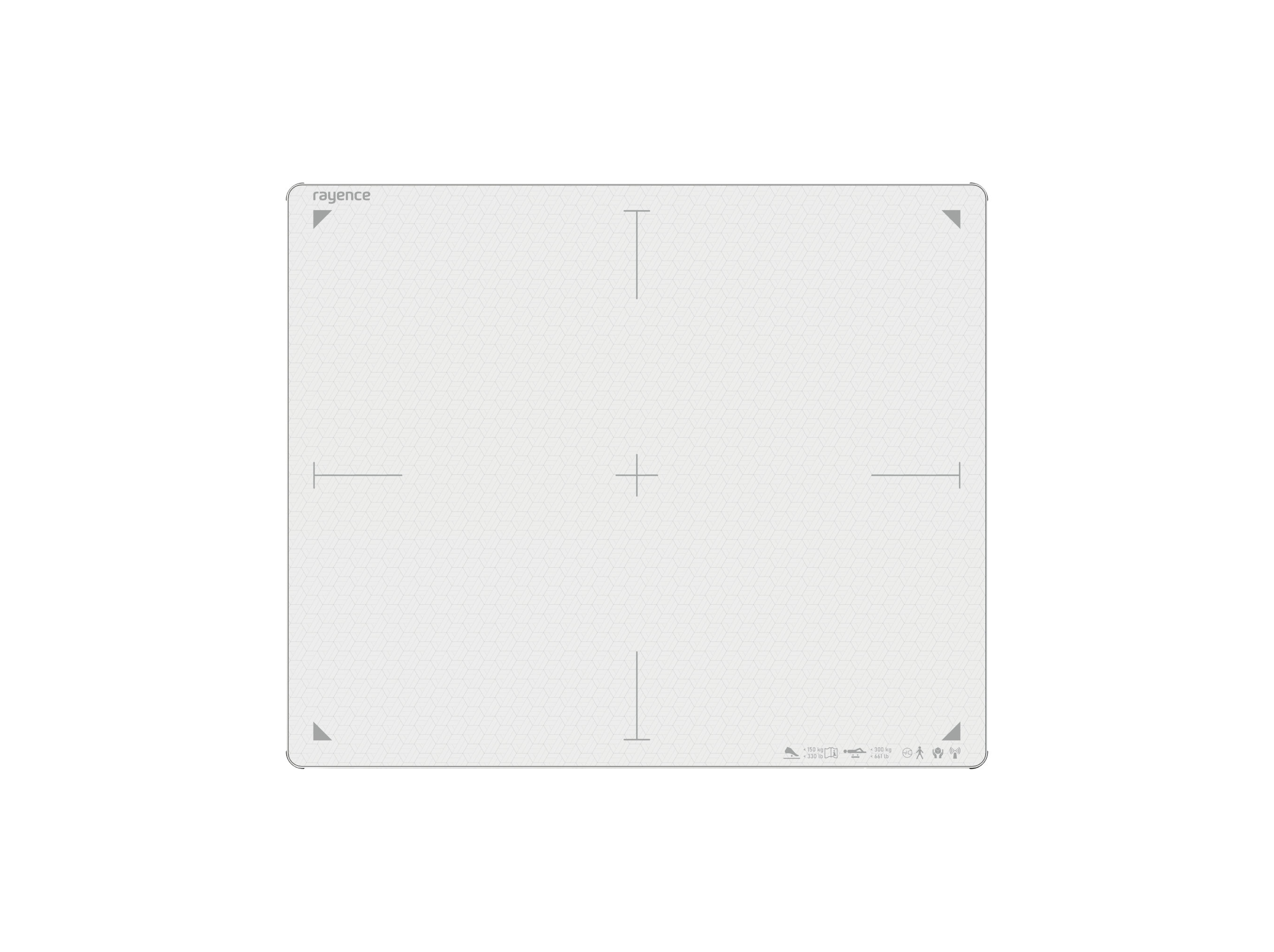

1417WCE
36 X 43 cm
![[용량낮춤] 1417WCE_1.gif](https://www.rayence.com/files/attach/images/41236/072/064/5c377f867b8091e019ebde5b286db859.gif)
Brand New 1417
-
Rayence Upgraded 3rd Generation Medical X-ray Imaging Solution
-
Customized solutions designed for diverse imaging areas and user environments
- High Resolution, Low Dose, Glass Free
-
Improved user convenience and efficient workflow
- Battery life up to 16 hours (Dual Battery)
- Built in Handle & Bumper
- Premium solution for high resolution
- Image quality optimized for extremity diagnosis
- Accurate diagnosis when diagnosing microscopic areas such as fractures
![[용량낮춤] 1417WCE 홈페이지 업로드 2_비교.gif](https://www.rayence.com/files/attach/images/41236/072/064/500009c37409bb8b30fa47a9b22e0d33.gif)
-
Dose reduction made possible with Rayence Core CsI
-
40% reduction in patient exposure (compared to the company's 2nd generation product)
-
Acquire high DQE images even at low doses with GreenON technology
![[용량낮춤] GlassFree.gif](https://www.rayence.com/./files/attach/images/41236/072/064/ec7769a8b9840cdd5eab1990211c5bae.gif)
Glass - Free For Durablitiy
-
Enhanced durability via glass-free TFT panel integration
-
Robust Design : Drop Height of 1.5m
-
Passed the U.S. Department of Defense durability standard test (MIL-STD-810G) (1417WCE-HR)
-
Light Weight : 2.5kg (not incl. battery)
&
- AcuDetect
- Rayence’s new x-ray detect technology
- Attain accurate images by reacting sensitively, even to low dose of x-ray signals
- MultiPixel
- Rayence’s new x-ray Imaging technology
- In addition to 100μm high resolution, it is also possible to select the 140μm high SNR mode according to the diagnostic area such as chest, abdomen, etc.
Application
Specification
| Sensor Type | a-si TFT |
|---|---|
| Scintillator | Csl : TI |
| Total Pixel Matrix (Pixels) | 3,534 X 4,302(100type) |
| Active Area (mm) | 353.4 X 430.2(100type) |
| Pixel Pitch (㎛) | 100 / 140 |
| Frame Rate (fps) | N/A |
| Energy Range (kVp) | 40 - 150 |
|---|---|
| Resolution (lp/mm) | 5.0 lp/mm(100type) |
| A/D Conversion (bits) | 16 |
| Data Interface | Wired : GigE |
| Dimension (mm) | 384 X 460 X 15 |
| Weight (kg) | 2.5 |
- This product is medical device, and users must carefully read and follow the safety instructions before operating it.
- Product design and specifications are subject to change without prior notice to improve product performance.
- Downloads are only supported for customers who have filled out information.
- The image quality level may vary depending on the product usage environment.
