0412DGA
10 x 30 cm
Examining various item available
- Specialized for Die-casting
- Suitable for Equipment system

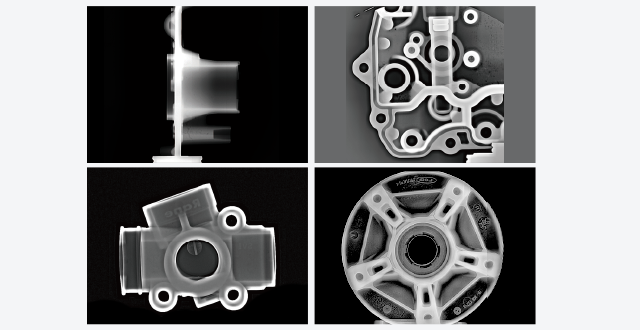

Premier Image Quality
- High contrast & Less noise
- High resolution with no lag

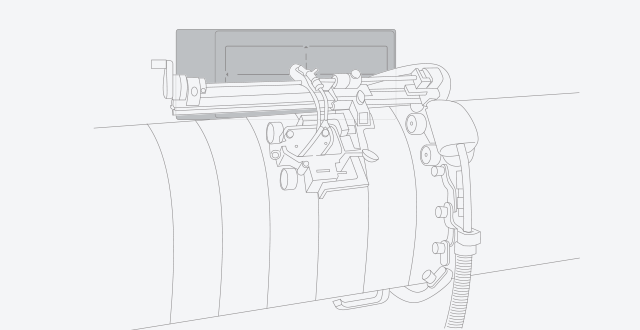

Unique designed for pipe condition
- Basic knowledge of what is going on inside the pipe
and where is the defect - Opimized for outdoor inspection
Specification
| Sensor Type | a-Si TFT |
|---|---|
| Scintillator | GOS |
| Total Pixel Matrix (Pixels) | 2304 x 768 |
| Active Area (mm) | 292.6 x 97.6 |
| Pixel Pitch (㎛) | 127 |
| Frame Rate (fps) | 6 |
| Energy Range (kVp) | 40 - 320 |
|---|---|
| Power Consumption | Typ. 9.5 |
| A/D Conversion (bits) | 16 |
| Data Interface | GigE |
| Dimension (mm) | 160 x 400 x 31 |
| Weight (kg) | 2.8 (not incl. handle, incl. battery) |
- Product design and specifications are subject to change without prior notice to improve product performance.
- Downloads are only supported for customers who have filled out information.
- The image quality level may vary depending on the product usage environment.
